PRODUCT

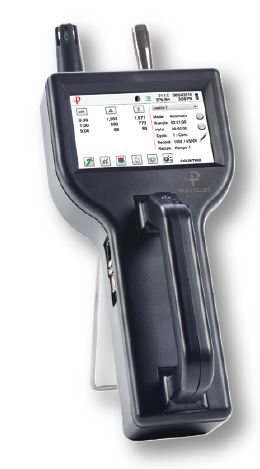

Handheld Airborne Particle Counter – 6 size channels - 8306 Particle Plus

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus data-download software. Particles Plus counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.

• Size Range:  0.3 to 25μm

• Size Channels:  Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning

• Flow rates:  0.1 CFM (2.83 LPM)

• Concentration Limit:  4,000,000 Particles/ft³ @ 5% coincidence loss

• Battery Run Time:  10 hours

• Light Source:  Long life laser diode

• Counting Efficiency:  50% @ 0.3 μm; 100% for particles >0.45 μm per JIS

• Zero Count:  <1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)

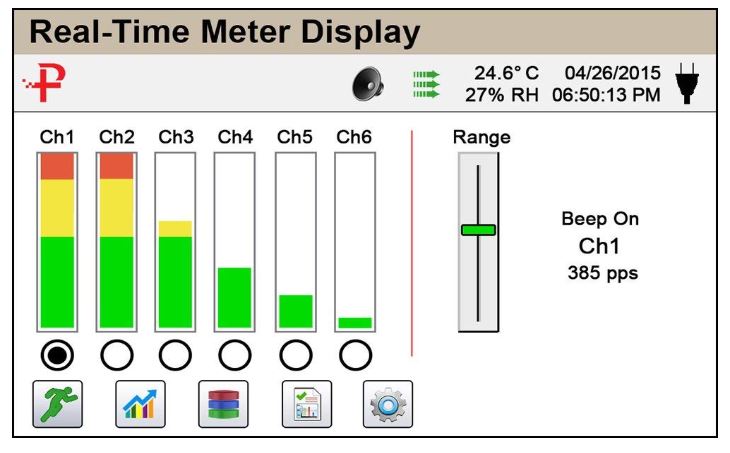

• Count Modes:  Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration

• Count Alarms:  1 to 9,999,999 counts

• Calibration:  NIST traceable

• Display:  4.3″ (10.9 cm) WQVGA (480×272) color touch screen

• Printer (Optional):  External thermal printer

• Vacuum Source:  Internal pump with automatic flow control

• Filtered Exhaust:  Internal HEPA filter

• Number of Channels:  6

• Custom Size Channels:  Calibration for custom size channels available

• Audible Alarm:  Adjustable built-in alarm

• Battery:  Removable Li-ion

• Battery Recharge Time:  4 hours within instrument (<2 hours with external battery charger)

• Reports:  ISO 14644-1, EU GMP Annex 1, FS 209E

• Recipes:  50 user-configurable recipes

• Communication Modes:  Ethernet and USB

• Optional Communication Modes:  Wireless 802.11 b/g, RS485 or RS232

• Environmental Sensor:  Includes temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity

• Alarm:  Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow

• Standards:  ISO 21501-4 and JIS B9921

• Calibration:  Recommended minimum once per year

• External Surface:  High impact injection molded plastic

• Dimensions (L x W x H):  10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes

• Weight:  2.2 lb (1.0 kg)

• Accessories:  Quick start guide, operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable

• Optional Accessories:  Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes

• Buffer Memory:  45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout

• Sample Locations:  Up to 1,000 locations 20 characters long

• Sample Time: 1 second to 99 hours

• Power:  110 to 240 VAC 50/60 Hz universal in-line power supply

• Operating Conditions:  41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing

• Storage Conditions:  32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing

• Warranty:  2 Years. Extended warranties available.
